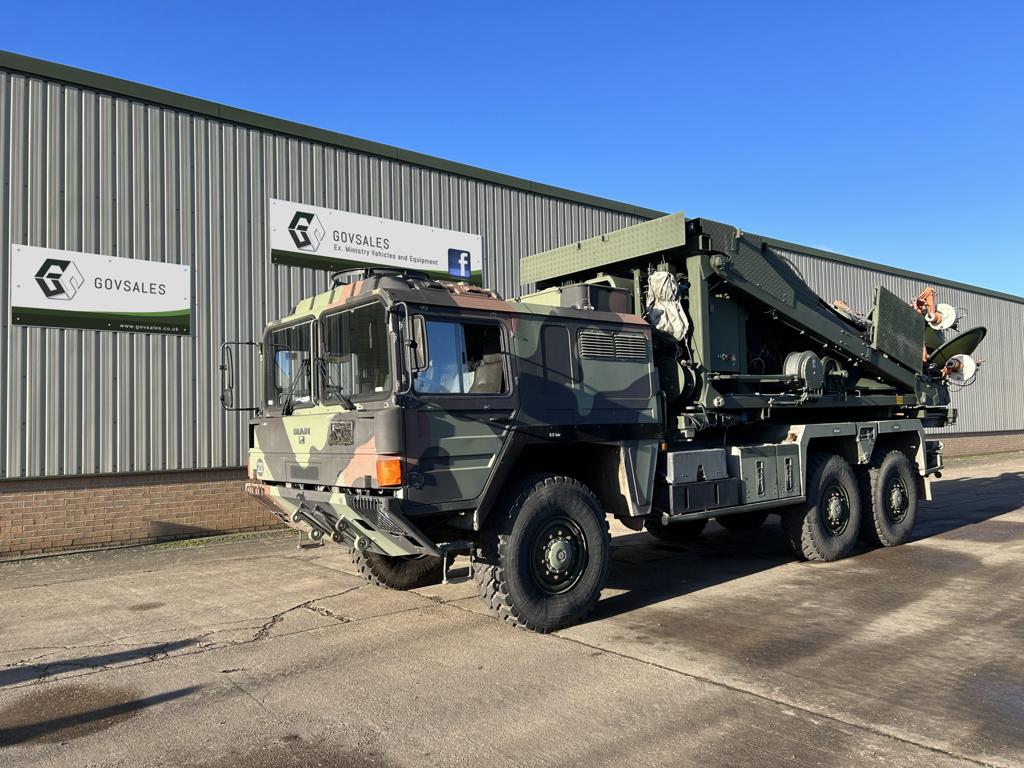

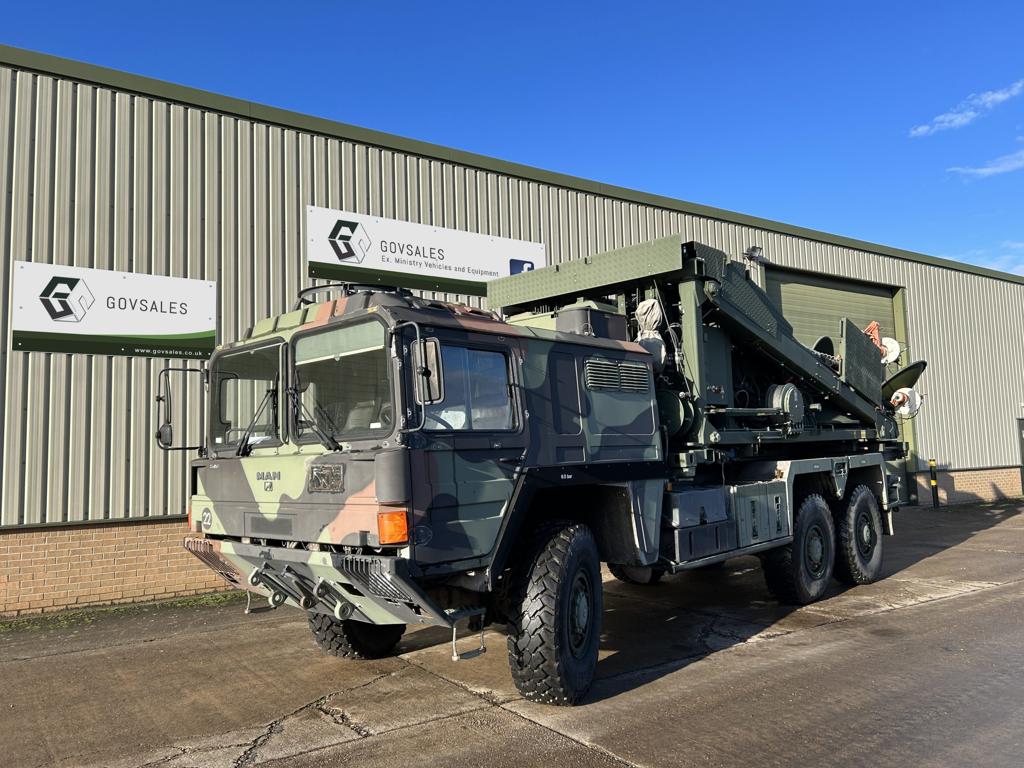

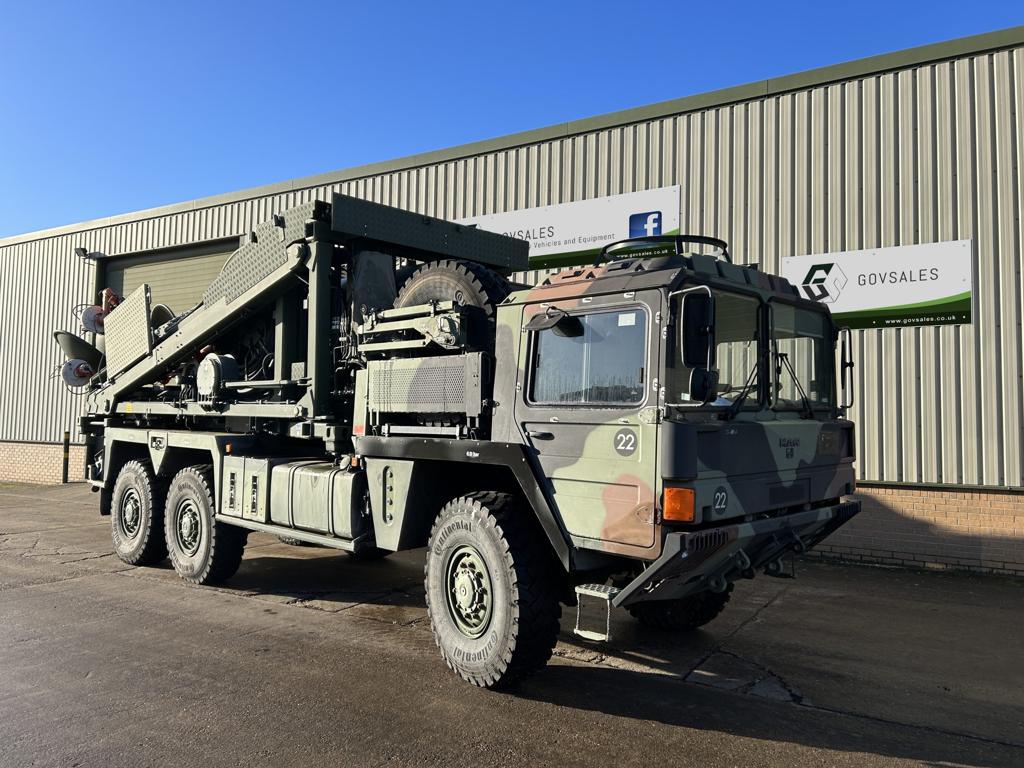

DetailsMAN KAT A1 25.422 6x6 with Aerial Mast
Direct from the military this model of vehicle is the later current in service vehicle used today

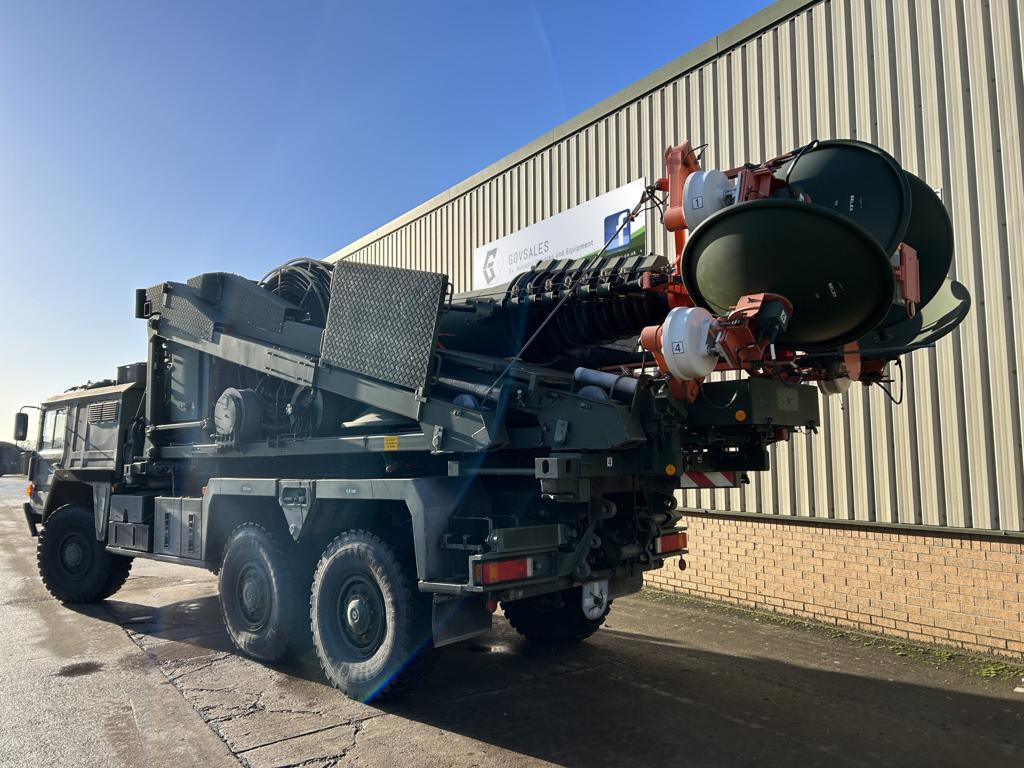

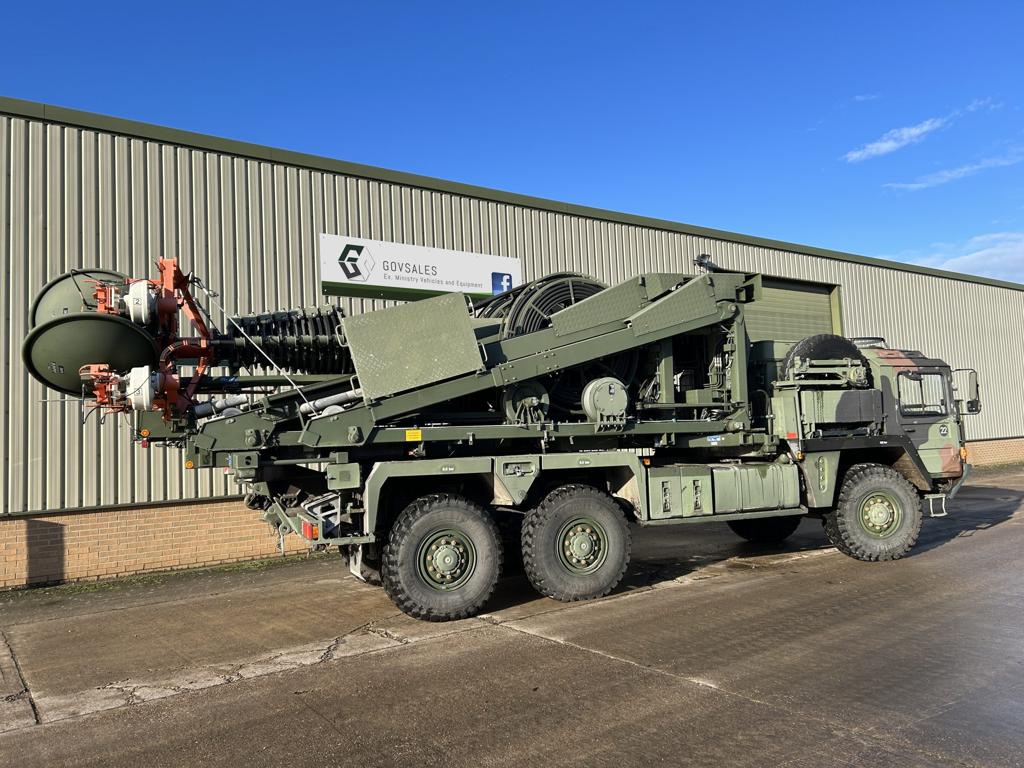

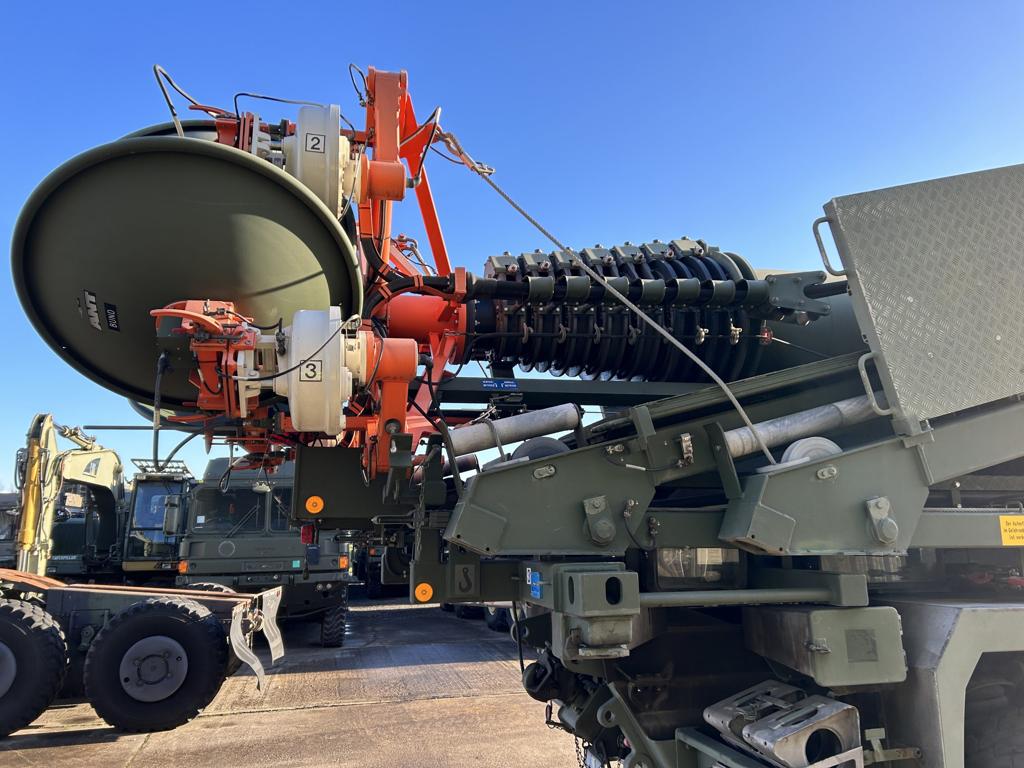

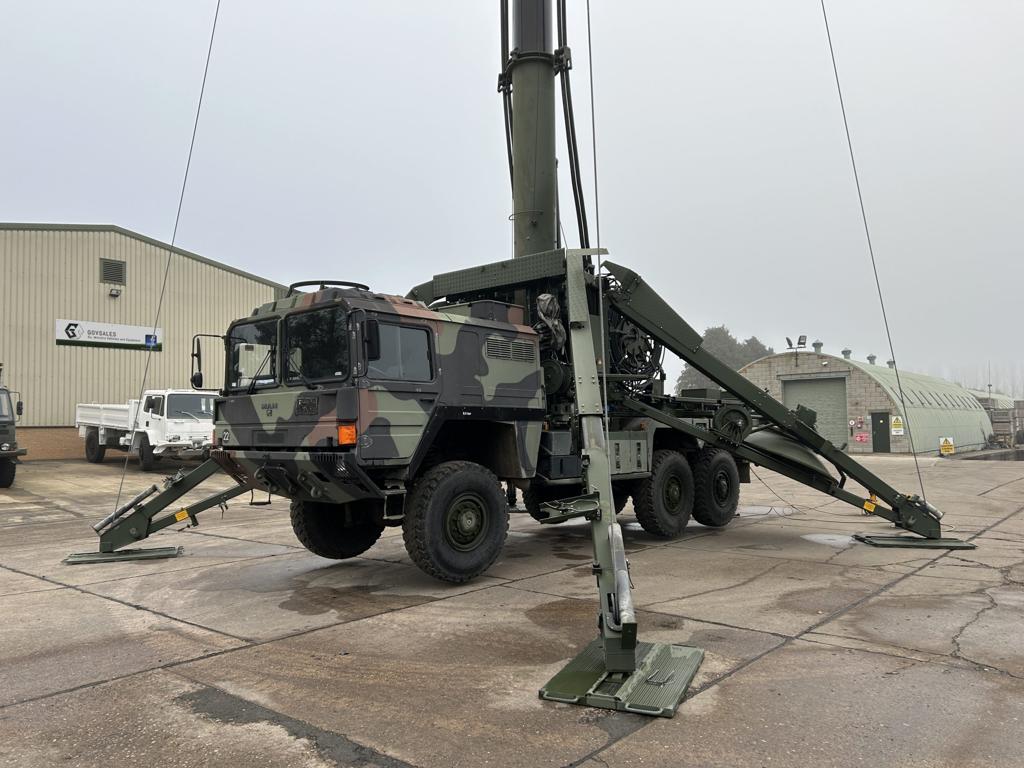

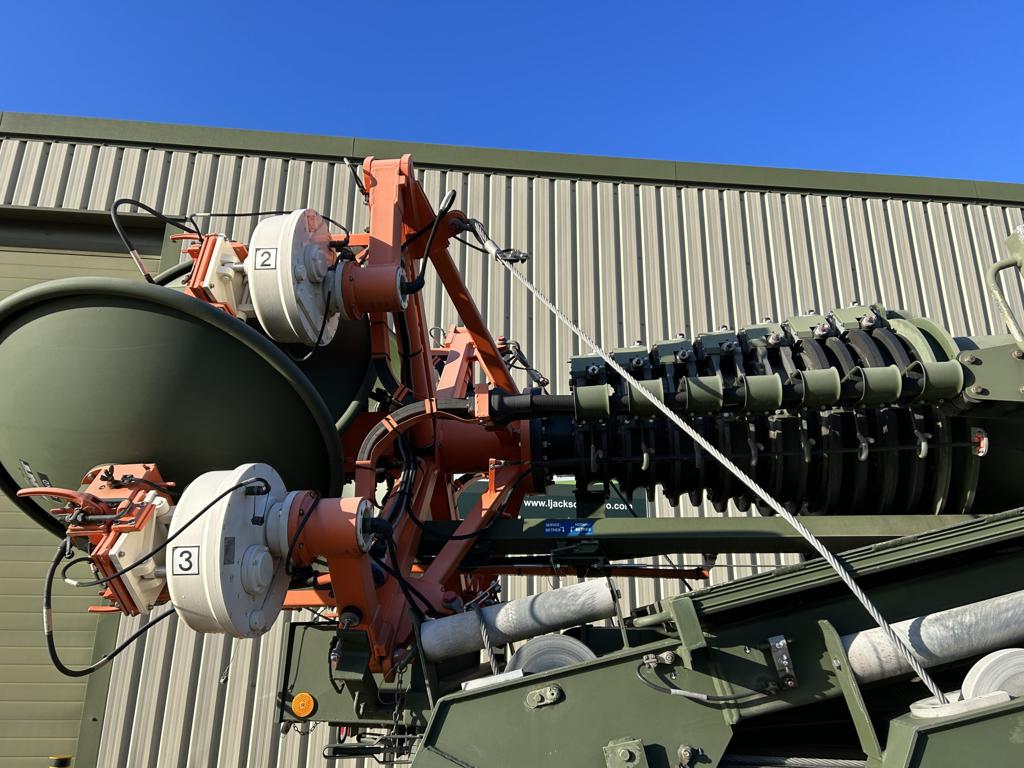

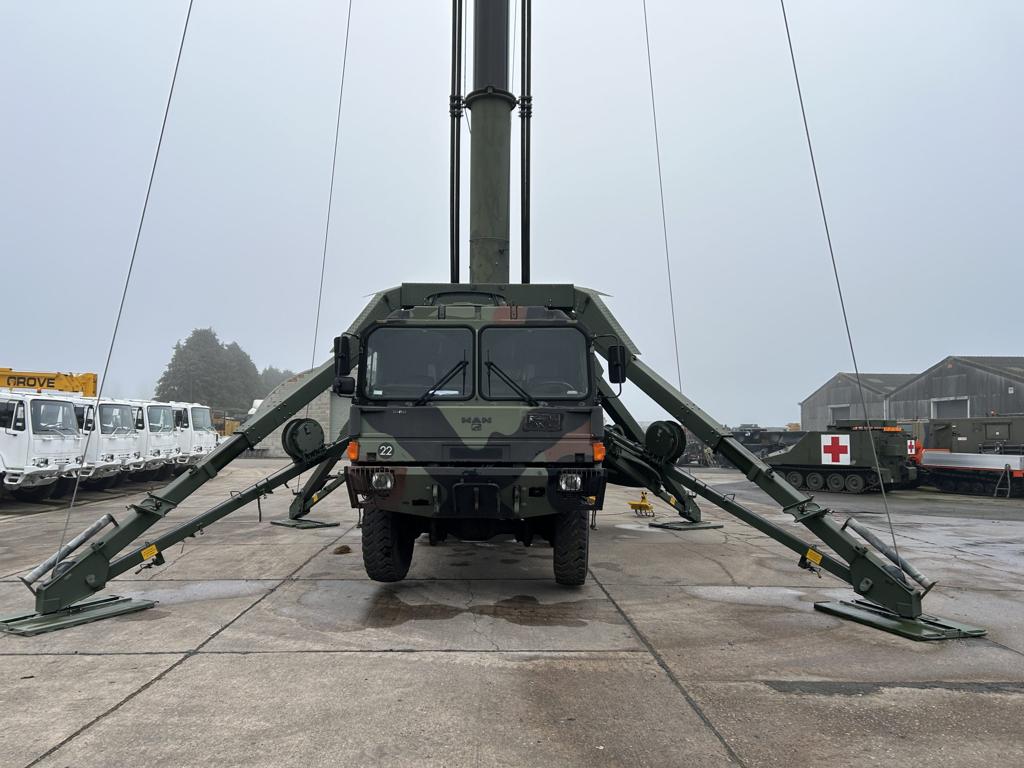

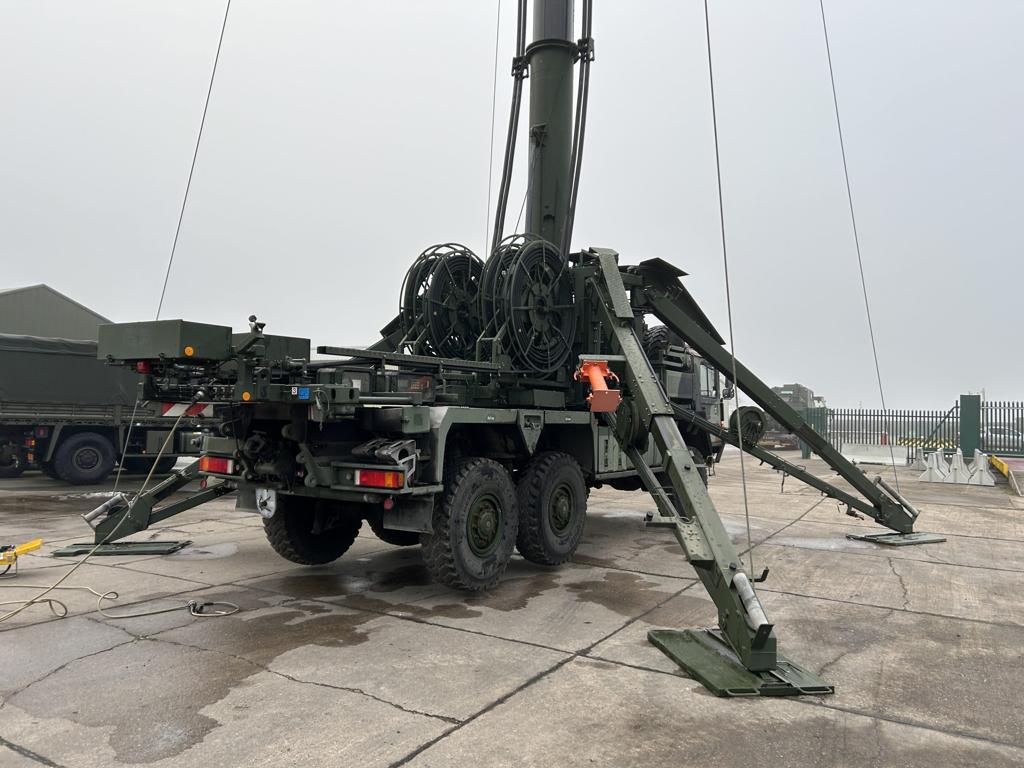

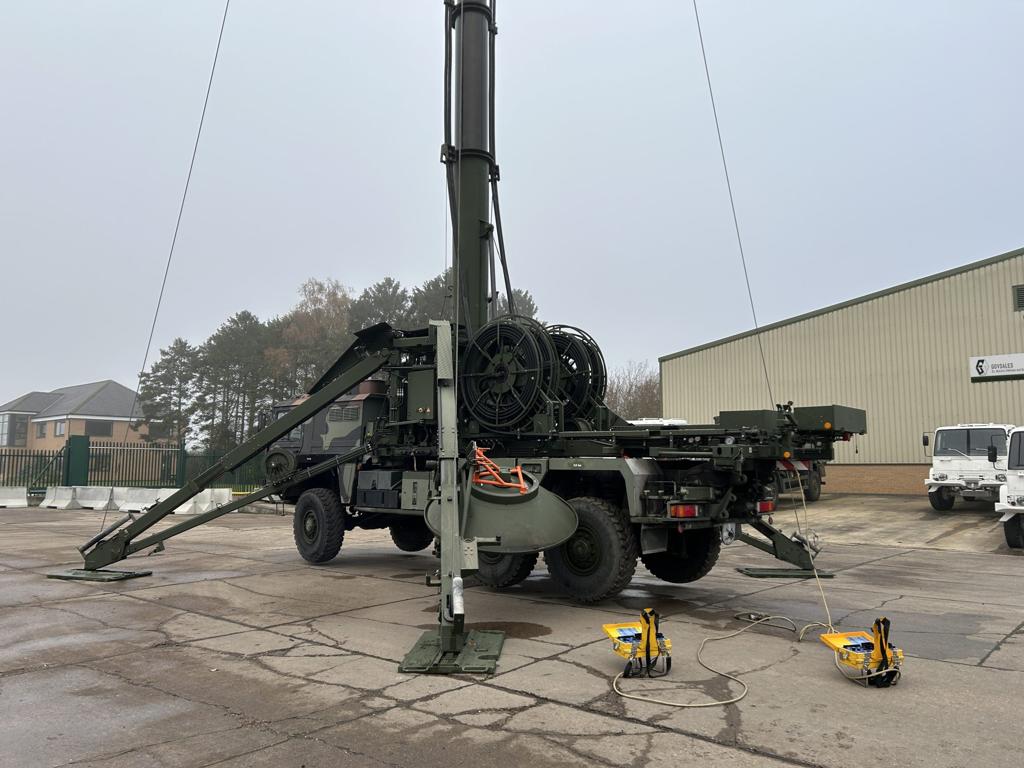

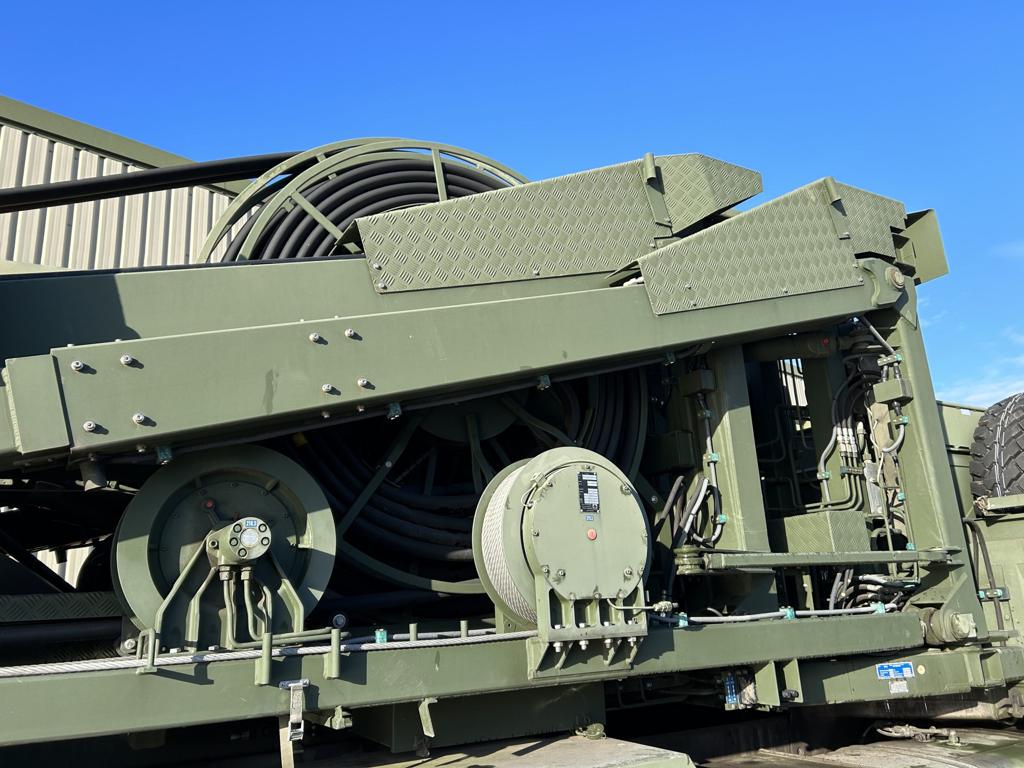

Fitted with a AMA 34 metre antenna mast system

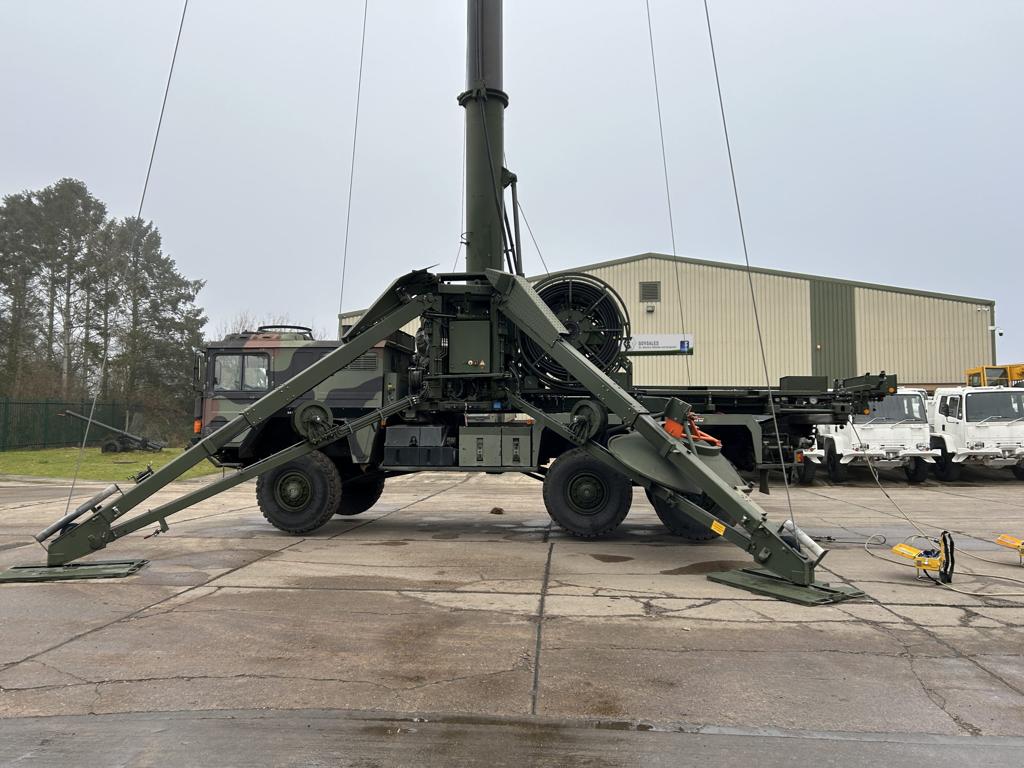

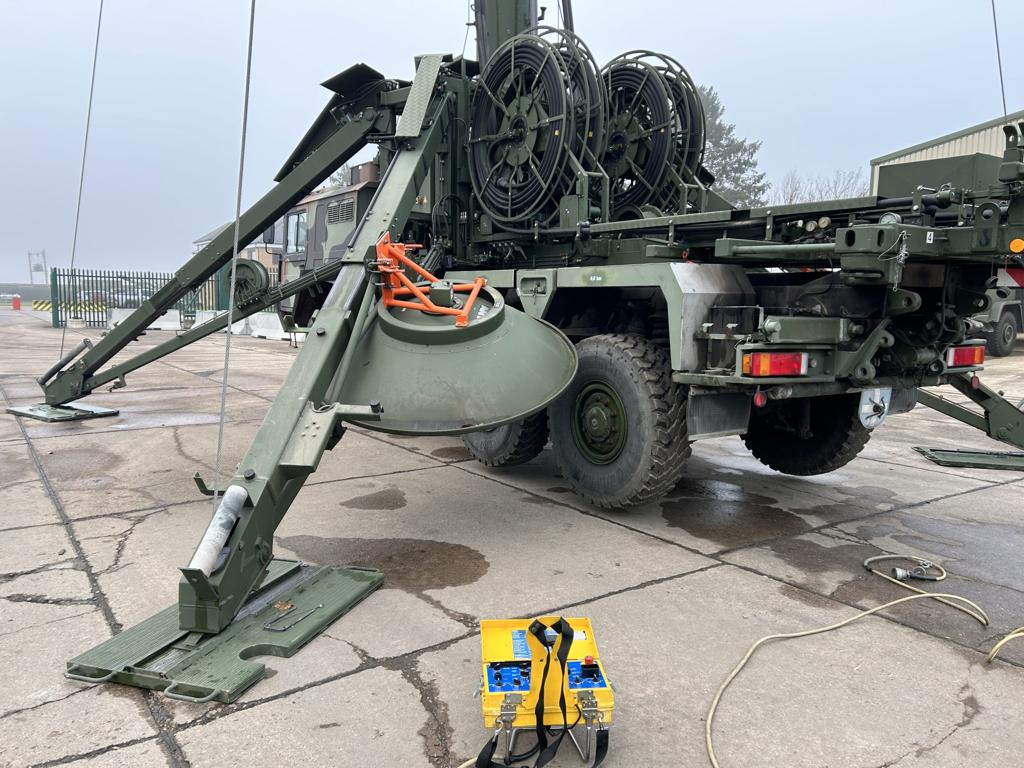

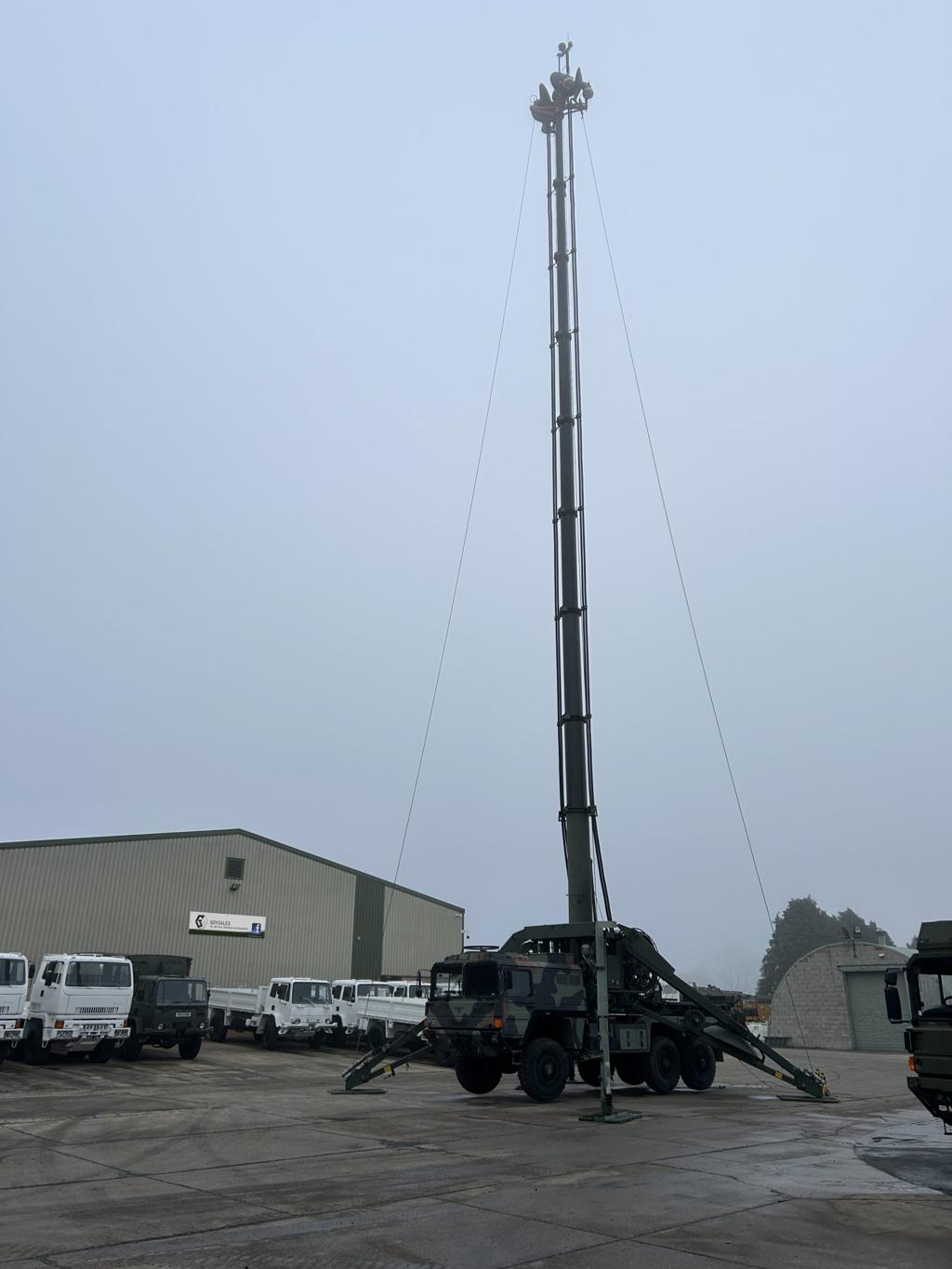

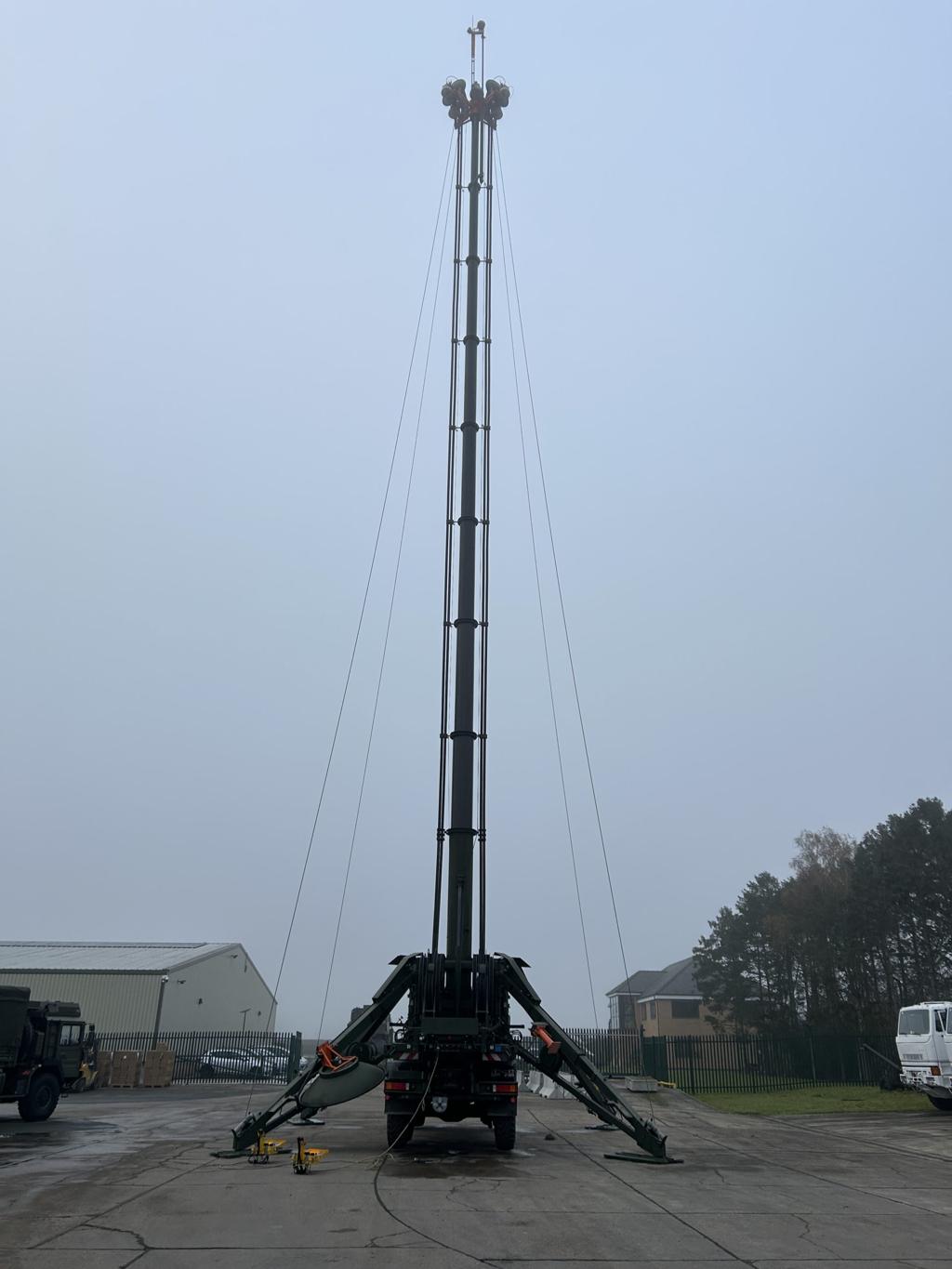

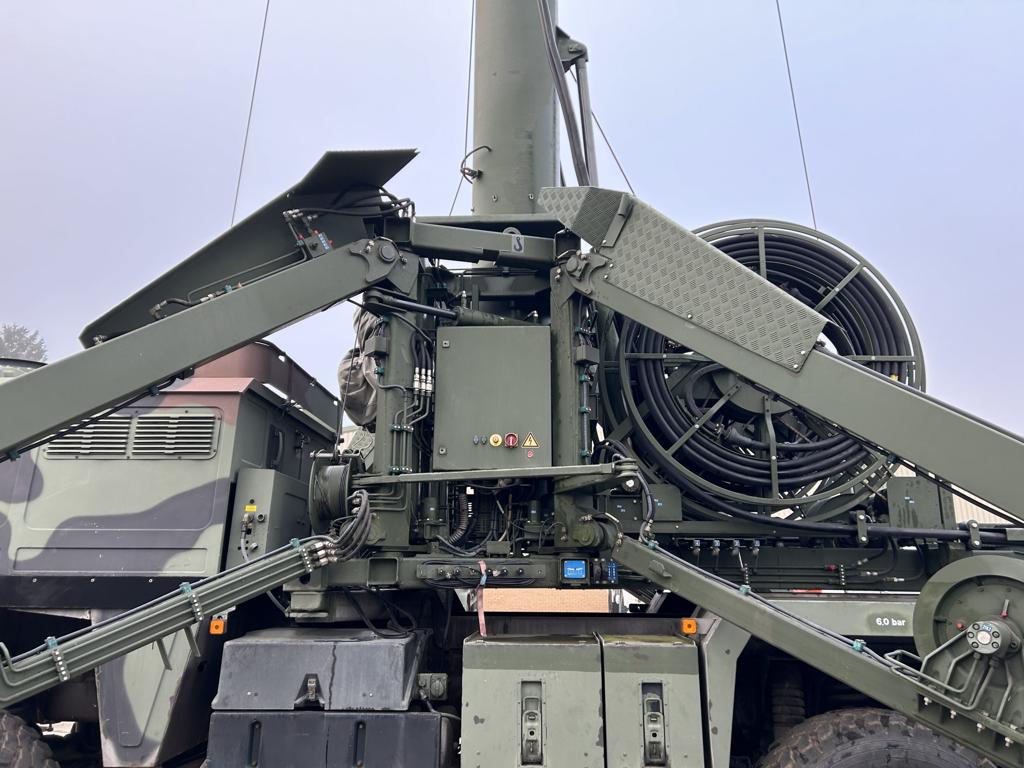

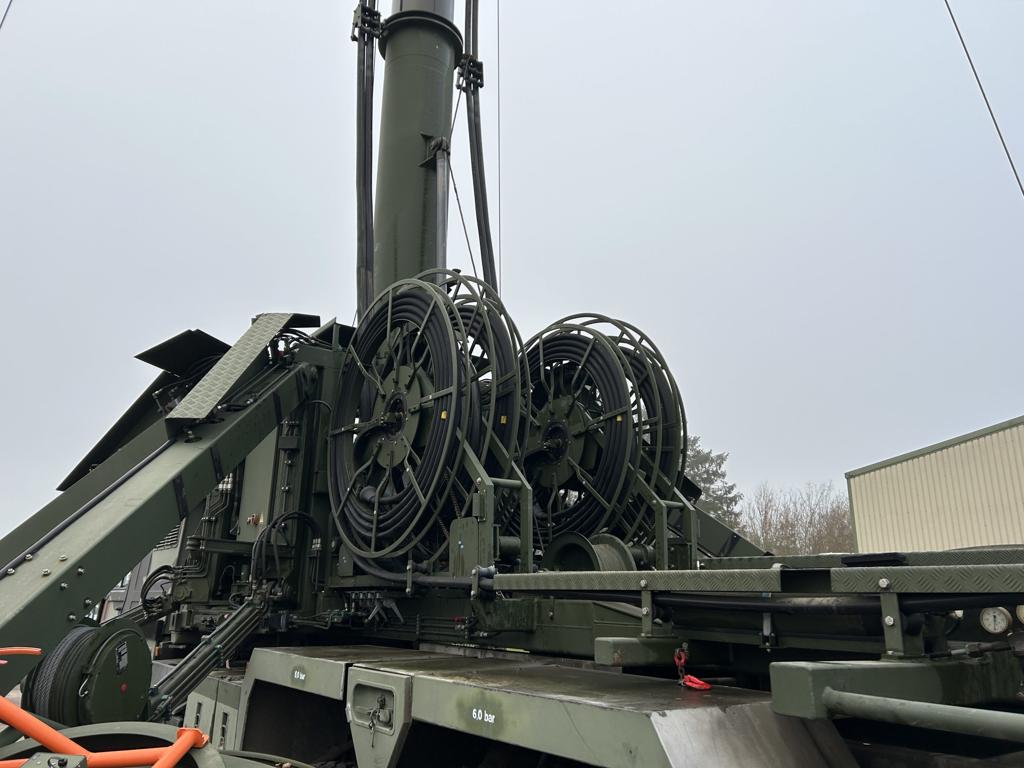

A self-propelled antenna mast system is suitable for mobile and quick use. A MAN truck converted for the military serves as the carrier vehicle; the truck and mast system have a total weight of 22.5 tons. The telescopic mast can be continuously extended to heights between 9.5 and 34 meters. The space required for the structure is 10 x 6 m, the antenna mast system can be leveled up to a terrain inclination of 15° with its hydraulic extensions. The setup requires 3 men who can set up a radio link within 30 minutes.
Assembly and dismantling is possible even under the most difficult conditions with wind speeds of up to 70 km/h (wind force 8). With an antenna mast system installed, operation can be carried out at wind speeds of up to 100 km/h (wind force 10).

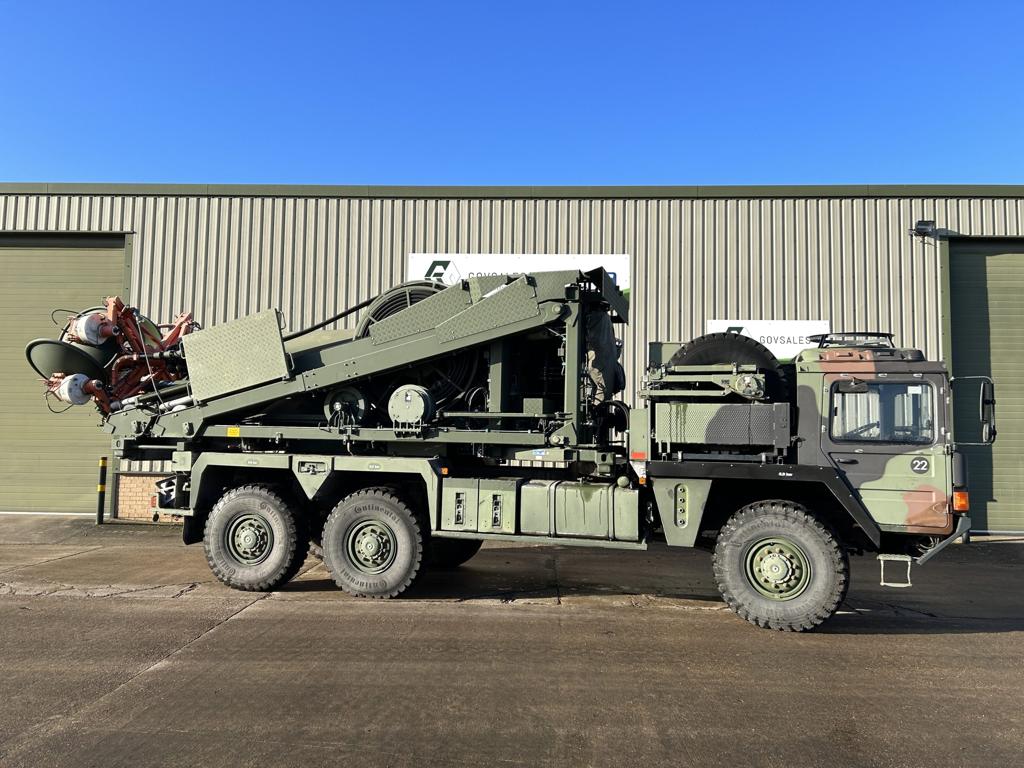

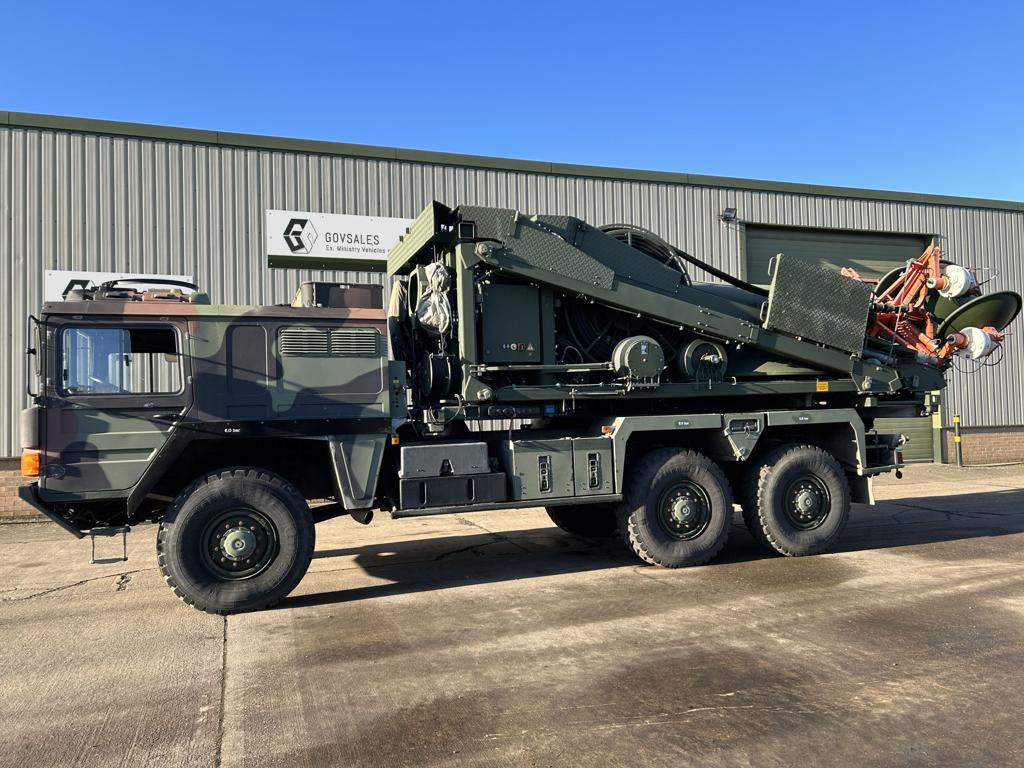

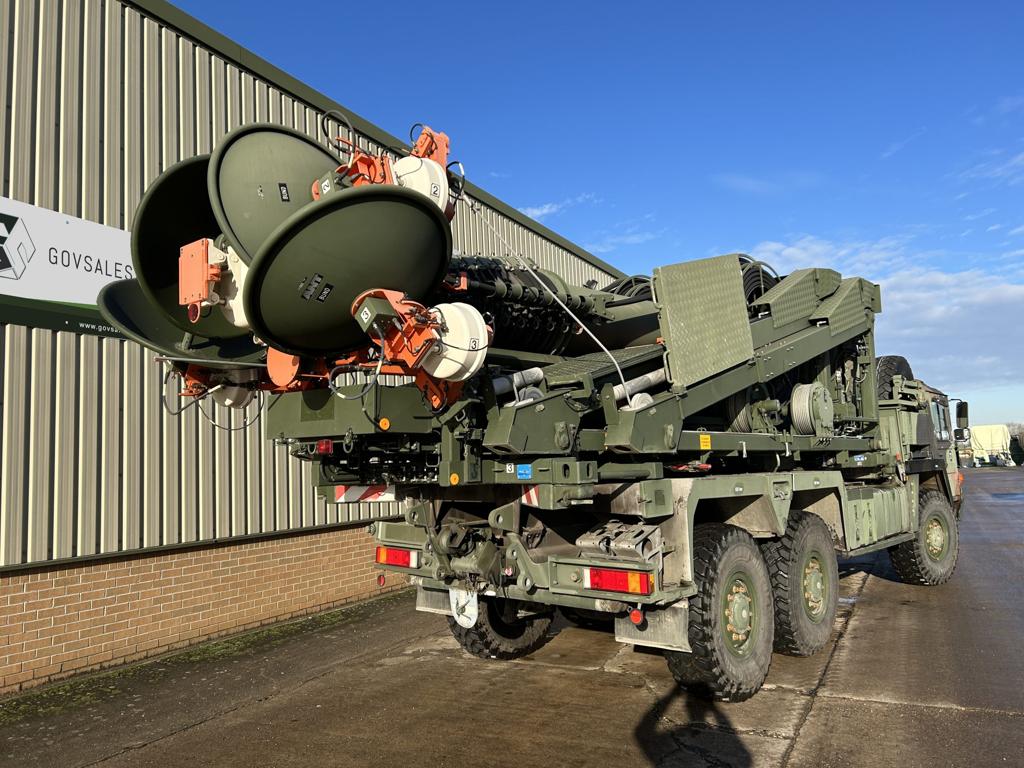

The vehicle has a 20ft ISO container carrier frame allowing fitment of the antenna mast system which can allow for easy dismount from the vehicle.
Permanent 6x6 all wheel drive

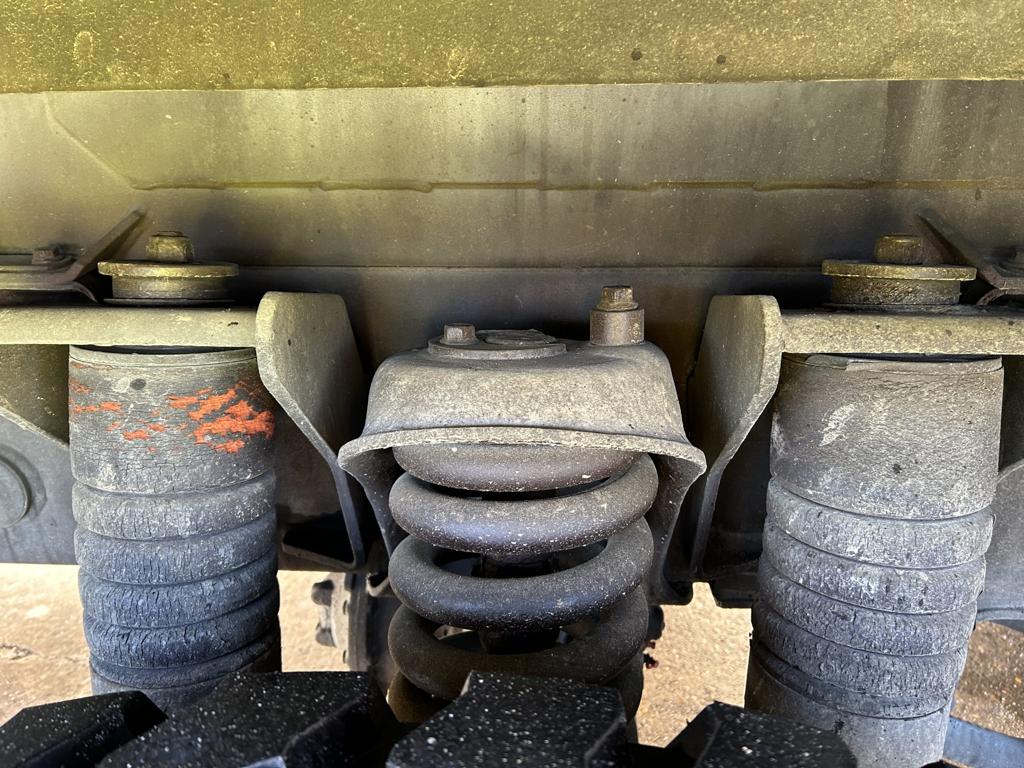

Coil spring with shock absorbers
ABS braking system
8 Speed ZF manual transmission WSK400 with torque converter
Choice of vehicles available with 20,000-40,000 kilometres only
This would make the ideal rough terrain outside broadcasting vehicle for a TV or Radio company
|
| CATEGORY | Cargo Trucks |
| MANUFACTURER | MAN |
| ENGINE | MAN D2866 6 Cylinder 420HP |
| GEARBOX | ZF 8 Speed Manual with WSK400 Torque Converter |
| BRAKES | Air over mechanical |

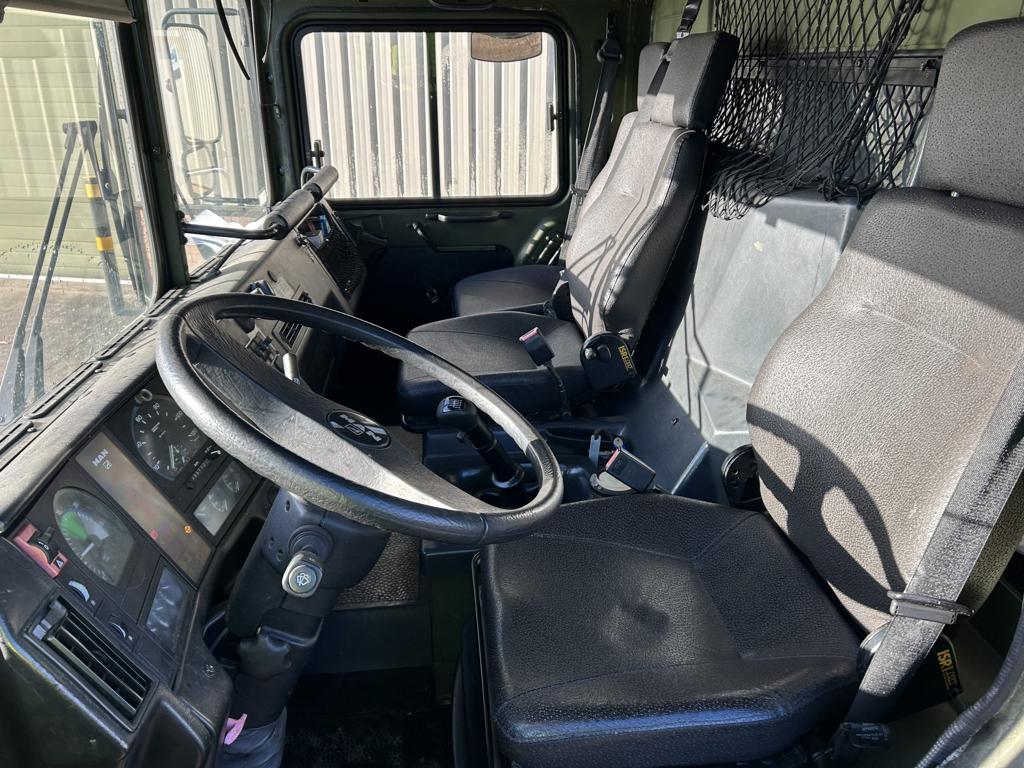

| STEERING | LHD - PAS |
| TYRES | 14.00 R20 |
| ELECTRICS | 24 volt |
| L x W x H | 10.90m x 2.50m x 3.60mm |
| GROSS WEIGHT | 24,000kg |
| HOURS / MILEAGE | 20,000-40,000 Kilometres |
| YEAR OF MANUFACTURE | 1995 |
| QTY AVAILABLE | 3 |
| EXPORT REQUIREMENTS | SIEL Licence Required |
| PRICE |
 |
| |
